NanoReader radon test system is recommended to smaller service laboratories and for research.
It is applicable for small quantity detector processing, due to its automated optical focus feature, but to its manual
detector feeding.
Compatible PADC* chip sizes:
10 x 10 mm2 (Radosys standard) and 24 x 22 mm2 (RSGS)
Scanned area: - RSKS: 48 mm2 / 5 + 1 view-fields
- RSGS: 145 mm2 / 15 + 1 view-fields
Magnification:
60x
Resolution:
40 um (at Radosys standard etching condition)
with track enchancement techniques at neutron application
Scan time:
<1 min
PC interfacing:
USB 2.0
Windows/Linux compatible

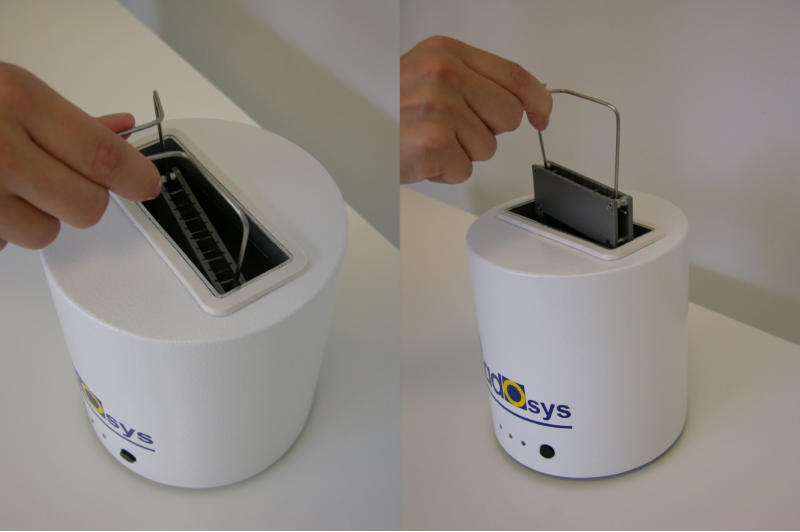

NanoReader system etching unit is NanoBath.
Compatible detector types:
RSKS
RSFW
RADUET
RSGS
RSFW
RADUET
RSGS
NanoReader
